技术特点

◆齿条由优质碳钢材料制成，推力强劲，运行稳定，特别适用于各类大型排烟通风窗，大型窗户和采光天窗的开启，双齿条安装方式，确保窗户开启时水平方向接触受力面。。

◆大于30000次推出及拉回的寿命设计，经负载测试合格。

◆内置接线端子，方便布线满足消防布线的要求。

◆保护等级：IP54。

◆为重型窗而考虑的多种驱动方式，适于跨度过大的天窗。

◆开启行程40-1000mm，可根据用户需求定制。

◆产品符合国标：GB/T 19001-2008，通过欧盟CE认证和中国***消防电子产品认证。



Technical Features

◆ The rack is made of high quality carbon steel, strong thrusting, stable running. Especially suitable for various larger smoke

exhaust ventilation window &skylights.

◆ Designed life: more than 30000 times push-pull cycles.

◆ Terminals built-in, convenient for fire control wiring.

◆ Protection class: IP54.

◆ Multiple drive mode for heavy skylight, suitable for span big window.

◆ The stroke can be customized according to customer requirements.

◆ In conformity with GB/T 19001-2008, passed the CE &CCCF certification.

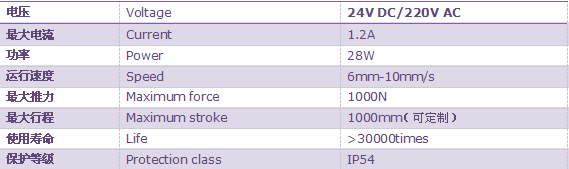

技术参数/Technical Date
