产品展示Product Showcase

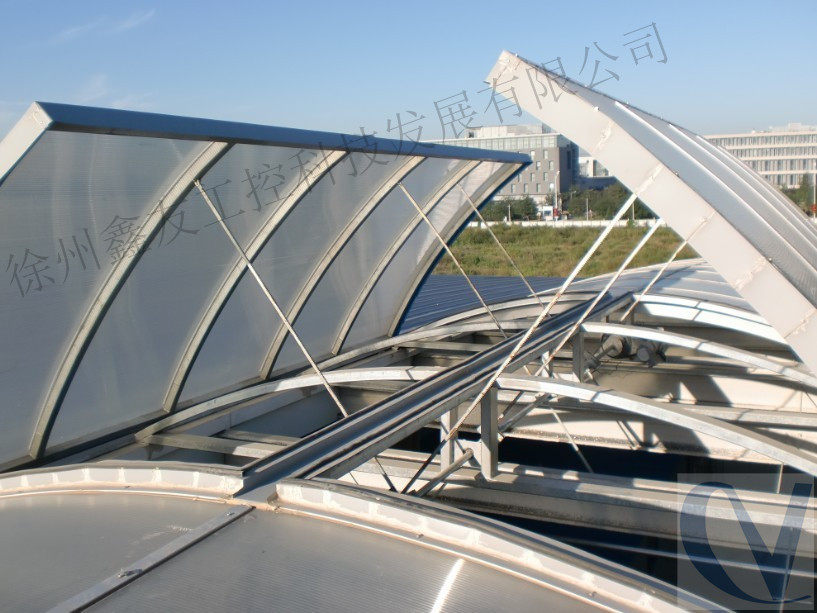

圆拱型电动采光排烟天窗/Arched Skylight

适用范围
◆适用于一般工业及民用建筑的屋顶采光、通风、排烟。不适用于高温及有腐蚀性的建筑。
◆适用于屋面坡度为2%-10%的建筑。
◆适用于基本风压小于等于900Pa的地区。

Application Scope
◆The general industrial &civil building's roof lighting, ventilation, smoke exhaust.
◆The roof slope range of buildings: 2%-10%.
◆Basic wind pressure: no more than 900Pa.

天窗类型/Skylight Type
◆三角形天窗/ Triangle Skylight
◆一字型天窗/ Linear Skylight
◆圆拱型天窗/Arched Skylight
◆避风型天窗/Wind Shelter Skylight
◆侧开型天窗/Side Open Skylight

1.三角型和一字型电动采光排烟窗适用于平时采光为主,必要时开启的建筑。其***大开启角度为60°和90°。
2.避风型电动采光排烟天窗适用于任何天气都要通风、排烟的建筑,可避免出现飘雨、飘雪的现象,***大开启角度为30°。
3.圆拱型电动采光排烟天窗适用于经常开启通风的建筑,其***大开启角度为45°。
4.侧开型电动采光排烟天窗适用于一般通风量要求的6米柱距纵向天窗的工业厂房,其***大开启角度为45°。

◆Triangle Skylight and Linear Skylight are applied to the buildings, used for mainly lighting, opened if necessary. The maximum opening angles are 60° and 90°.
◆Wind Shelter Skylight is applied to the buildings, which guarantee ventilation &smoke exhaust in any weather. The maximum opening angle is 30°.
◆Arched Skylight is applied to the buildings, used for mainly ventilation. The maximum opening angle is 45°.
◆Side Open Skylight is usually applied to the industry workshop. The maximum opening angle is 45°.

天窗的启闭控制方式
1.电动开窗机采用24V直流或者220V交流电源,功率是30W,启闭时间6-8秒。
2.天窗启闭宜群组控制,每组天窗数根据天窗数量及控制距离决定。
3.天窗三种控制方式:通用控制方式、智能控制方式、智能网络控制方式。
以上控制方式均可以消防联动控制,与消防报警连接。

Control Mode of Skylight
◆The actuator feature:
  Current:24V DC or 220V AC, Power: 30W, Opening and Closing time:6-8 seconds.
◆The skylights are suitable for group control, the amount of each group is depended on the quantity and control distance of skylights.
◆Three control modes: general mode, intelligent method &intelligent network method.
