特点

1.叶片采用铝合金材质，美观、大气、还具有很强的防腐蚀功能。

2.百叶颜色可根据客户的要求而定。

3.具有遮阳、通风、防雨，采光以及自动排烟功能。

4.通风效果显著，可搭配风雨感应器实现自动闭合。

5.应用于仓库、屋顶等范围。

6.***大长度范围为900---3800mm***大宽度范围为600---2700mm。

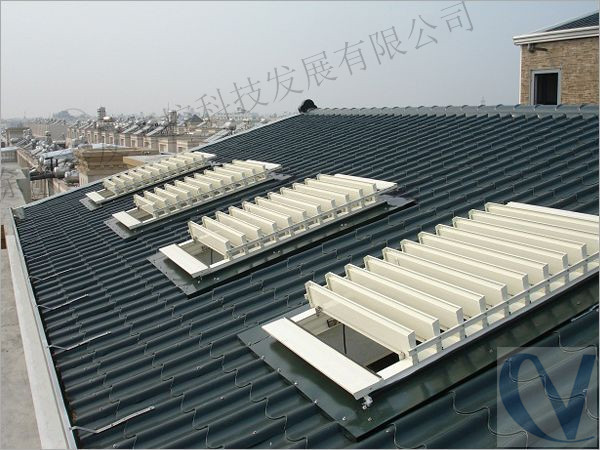

RF louvre is a highly-efficient, attractive, low profile louvred smoke and natural ventilator which has been specifically designed for both smoke and heat exhaust and natural ventilation applications.RF Louvre can be roof or wall mounted for exhaust or air inlet. The system offers effective fire safety with units tested for use as smoke ventilators to BS EN 12101-2. The roof RF louvre can also be supplied with a hinged base which can be ultilised as an access hatch.



Features Include:

High efficiency

Weatherproof - its resistance to air leakage and rainwater.

Reliability - life cycle tested to class RE10000 .

Durability - tested to withstand wind loads of class WL1500 and snow loads Controls - a wide range of control options are available

Installation - can be fitted into any roof or glazed construction

Maximum Size :Length - 940mm to 3800mm Width - 600mm to 2700mm



RF is suitable for fixing in a wide variety of applications. The ventilator is supplied in two parts to facilitate easy installation on site, the base assembly and louvre box assembly.

The base types and applications are as follows:

Turndown Base - mounting onto weathered roof upstand

Flat Base - mounting directly onto roof sheeting

Glazing Base - integrating into glazing systems



The roof RF can be supplied with both insulated louvre blades and an insulated body to assist in ensuring the building is adequately insulated. Also the RF can be manufactured with polycarbonate blades. Translucent polycarbonate louvre blades provide excellent daylighting using a durable UV stabilised material. When closed it can provide an average diffused light transmission in excess of 80%, enabling savings on artificial lighting. Pile weather seals are also fitted to the louvre blade edges and sides to minimise heat loss.
